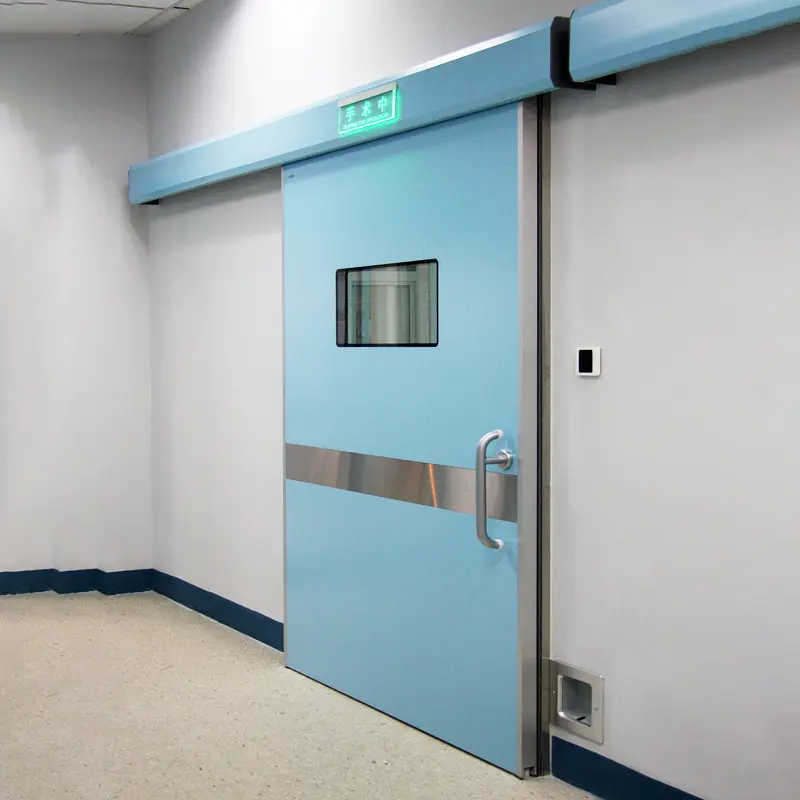

The control system of Clean Room Hermetic Sliding Door is designed in accordance with the safety requirements of medical electrical systems, and can adopt multiple control methods according to hospital requirements, without causing electromagnetic interference to other equipment in the same location.
The Clean Room Hermetic Sliding Door uses a safety sensor to automatically detect whether there is an obstacle when the door is closed, and keep the door open to ensure the safety of passengers or equipment. During operation, once an obstacle is encountered, the door will automatically rebound to ensure the safety of passengers. Clean Room Hermetic Sliding Door runs quietly and quickly, and has excellent sound insulation.
|
Gate sliding modes |
Single-opening |
Double-opening |
|
Gate leaf weight |
≤1*195 kg |
≤2*185 kg |
|
Gate leaf width |
600-1800mm |
500-2000mm |
|
Opening speed |
150-500mm/s(Adjustable) |
150-450mm/s(Adjustable) |
|
Closing speed |
100-450mm/s(Adjustable) |
150-430mm/s(Adjustable) |
|
Motor |
24V 100W brushless DC motor |
|
|
Opening time |
0-9s(Adjustable) |
|
|
Automatic function |
Automatically reverse upon obstruction |
|
|
Voltage |
AC220V 50Hz-60Hz |
|
|
Ambient temperature |
-20°C~60°C |
|
