Triple Linkage Overlapping Door
  • Triple Linkage Overlapping DoorTriple Linkage Overlapping Door
  • Triple Linkage Overlapping DoorTriple Linkage Overlapping Door

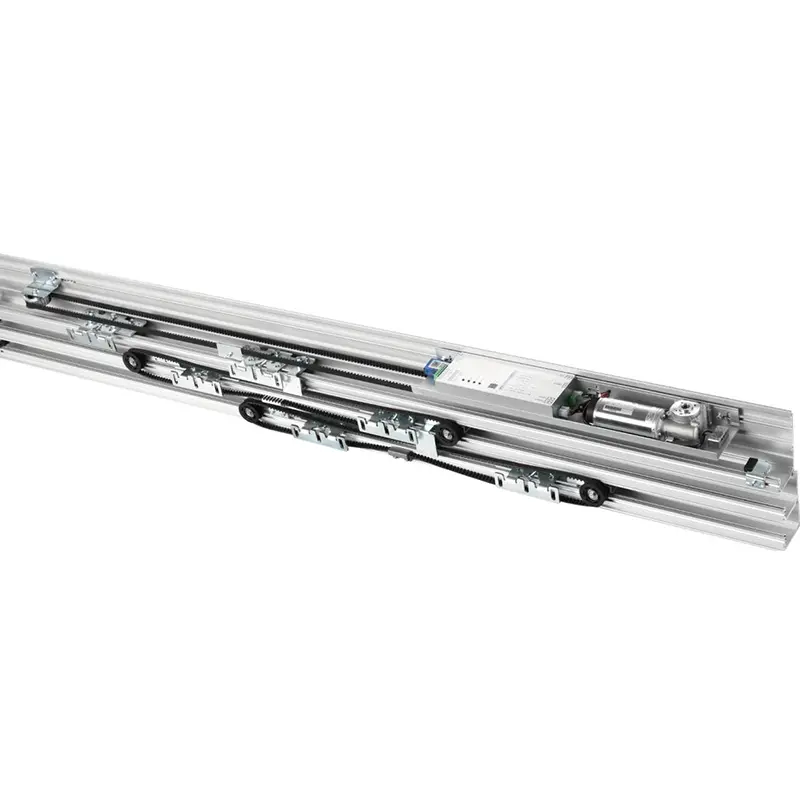

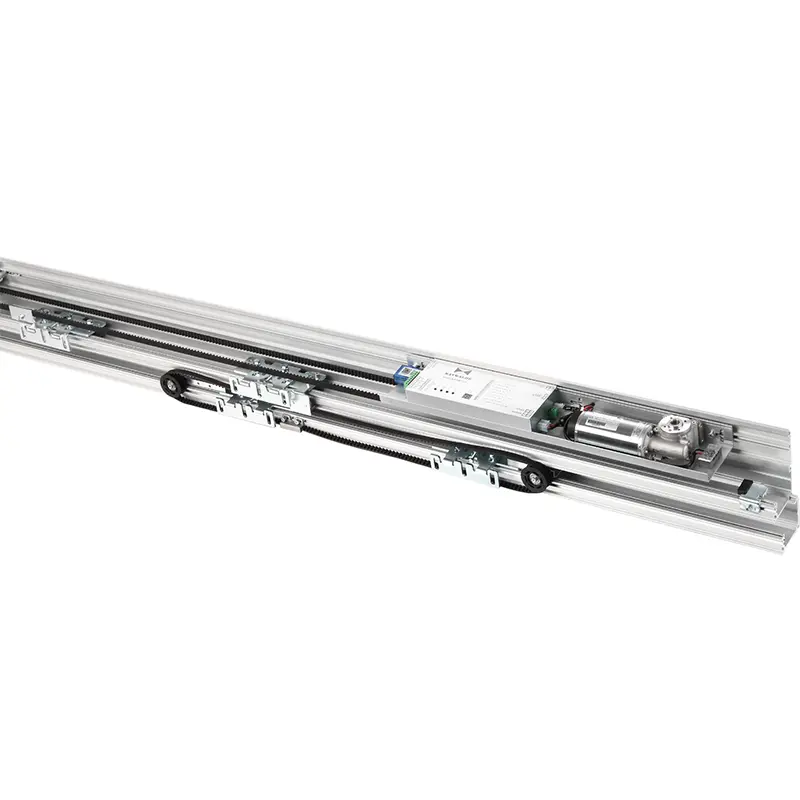

Triple Linkage Overlapping Door

As a professional Triple Linkage Overlapping Door manufacture, you can rest assured to buy Triple Linkage Overlapping Door from our factory and we will offer you the best after-sale service and timely delivery.


Triple Linkage Overlapping Door Weight Adaptation Technology: Intelligently recognizes the weight of different door bodies and automatically adjusts the operation program to ensure optimal performance and enhance operational efficiency and stability.

Automatic Door Stroke Recovery: Features self-detection and recovery capabilities, automatically adjusting the door opening and closing stroke to maintain smooth door operation, even after prolonged use or external factors causing stroke deviations


Technical Specifications Of Triple Linkage Overlapping Door :

Door style

Single-opening

Double-opening

Door leaf weight

≤3*100 kg

≤6*80 kg

Door leaf width

600-1300mm

600-1250mm

Opening speed

150-700mm/s(Adjustable)

Closing speed

100-600mm/s(Adjustable)

Motor

24V100W brush DC motor

Opening time

0-9second(Adjustable)

Impact function

Rebounding up on impact

Voltage

AC110-220V 50Hz-60Hz

Sectional View Of Triple Linkage Overlapping Door :

The Mini-drive Of Triple Linkage Overlapping Door :
