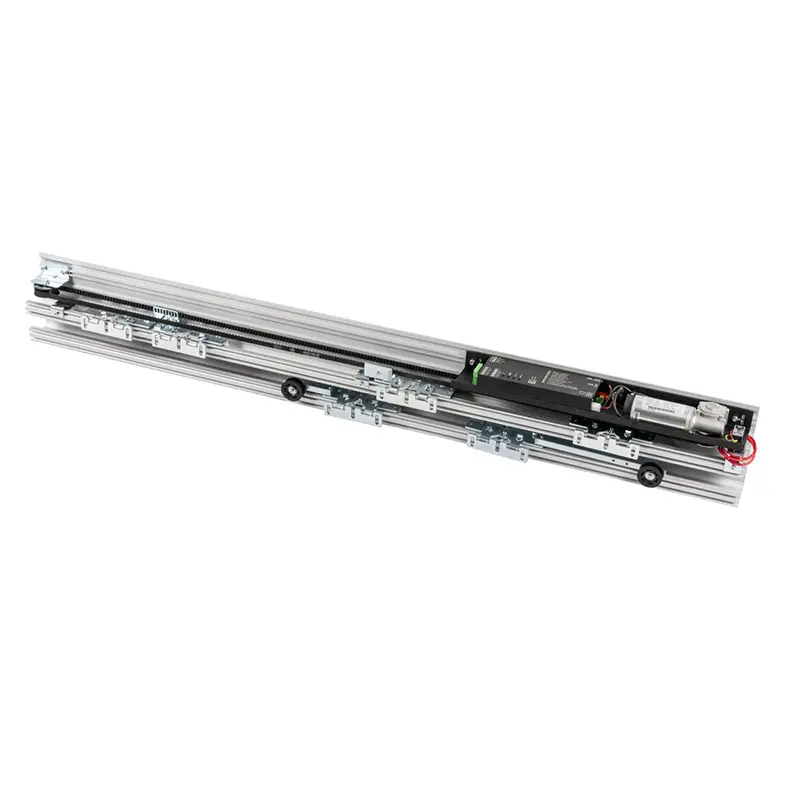

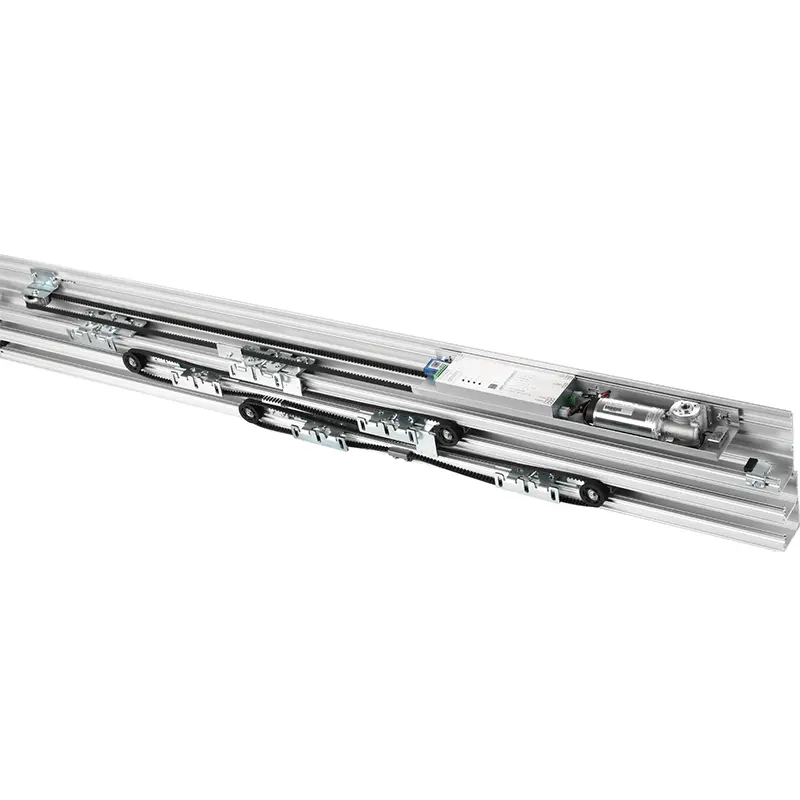

Double Linkage Overlapping Door

You can rest assured to buy Double Linkage Overlapping Door from our factory and we will offer you the best after-sale service and timely delivery. In recent years, our factory has continuously expanded its production force and further tightened its technical strength, and has formed a benign enterprise operation mechanism. Welcome customers at home and abroad to cooperate sincerely and create brilliance together.

Double Linkage Overlapping Door adopts a unique double linkage overlapping design, which achieves stable and reliable operation through a precise pulley and track system. Its door structure is sturdy, usually composed of a high-strength aluminum alloy frame and tempered glass or laminated glass, which is both beautiful and safe. The product has an automatic induction opening function and is equipped with an infrared anti-pinch safety light curtain to ensure pedestrian safety. At the same time, Double Linkage Overlapping Door is easy to integrate into the intelligent management system to achieve efficient and convenient entrance and exit control. It is suitable for places with high traffic flow, such as hospitals, shopping malls, and airports.


Chip-based Data Storage & Memory:

Equipped with a chip that stores learned data, allowing the system to resume previous settings without the need for restart after a power outage, ensuring stable operation.


Emergency Stop & Push-to-Open Signal:

Incorporates an emergency stop button and a push-to-open signal, with the push-to-open signal having the highest priority, ensuring rapid response in emergency situations for safe evacuation.


Fire Alarm Signal:

Features a dedicated fire alarm signal with secondary priority, ensuring the automatic door responds promptly according to preset programs in case of fire, aiding evacuation efforts.


One-Touch Factory Reset:

Allows for easy one-touch factory reset by pressing and holding the learning button for 7 seconds, facilitating maintenance and debugging.


High-Precision Optical Encoder:

Utilizes an optical encoder with a 100-line metal code disc, providing precise position feedback for more accurate door control and smoother operation.

Technical specifications of Double Linkage Overlapping Door:

Door style

Single-opening

Double-opening

Door leaf weight

≤2*200 kg

≤4*150 kg

Door leaf width

600-1300mm

600-1250mm

Opening speed

150-700mm/s(Adjustable)

Closing speed

100-600mm/s(Adjustable)

Motor

24V100W brush DC motor

Opening time

0-9second(Adjustable)

Impact function

Rebounding up on impact

Voltage

AC110-220V 50Hz-60Hz

Sectional view of Double Linkage Overlapping Door:

The mini-drive of Double Linkage Overlapping Door:
