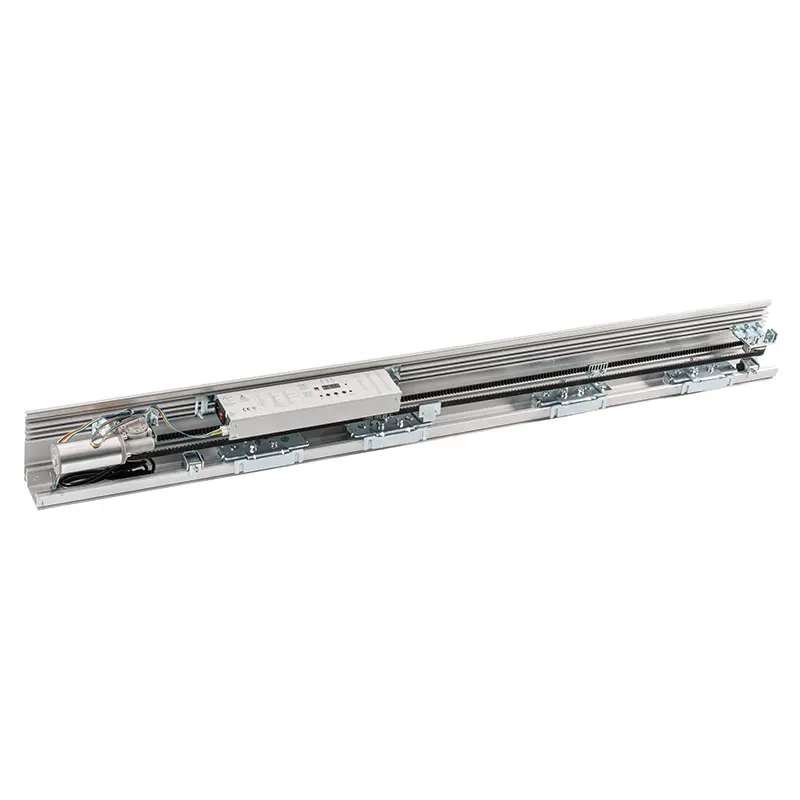

Heavy-Duty Automatic Sliding Door

Heavy-Duty Automatic Sliding Door are widely used for special areas where heavy automatic sliding doors max. 200kgs shall be applied, like laboratories, hospital operating rooms, mansion buildings, etc. With intelligent microcomputer controller, great power motor(100W), specially designed high-strength hangers, high quality hanger wheels(pulleys) and other durable items.

Send Inquiry

Product Description

Heavy-Duty Automatic Sliding Door strongest’ s system works quite stably and powerfully.And the special design and strong structure makes it bear load. The heavy automatic glass sliding door is designed and installed for great finance building, each glass door panel weight is 200kgs, and the height of the door is 4m.

Technical data of Heavy-Duty Automatic Sliding Door:

Door sliding modes	Single-opening	Double-opening
Door leaf weight	≤1*195 kg	≤2*190 kg
Door leaf width	600-1200mm	500-1150mm
Opening speed	200-650mm/s(Adjustable)	200-600mm/s(Adjustable)
Closing speed	150-550mm/s(Adjustable)	150-550mm/s(Adjustable)
Motor	24V 100W brushless DC motor
Opening time	0-9s(Adjustable)
Automatic function	Automatically reverse upon obstruction
Voltage	AC220V 50Hz-60Hz
Ambient temperature	-20°C~60°C

Features and functions of Heavy-Duty Automatic Sliding Door:

**Advanced brushless motor and worm gear reducer integration , high efficiency, great torque, no powder pollution,quick in speed up and down, long service life.

**The unique self-locking function, need not extra accessories, full function remote control device, safe and reliable.

**Safety sensor, ensure safe passage

**Has a variety of trigger way to open the door

**In the event of a power failure, use the backup batteries to keep the door in normal operation.

**Self-locking function, when the door is fully closed , keep the state.

Packing list of Heavy-Duty Automatic Sliding Door:

Cross section details of VZ-195 Heavy-Duty Automatic Sliding Door:
