Automatic Sliding Photocell Door
  • Automatic Sliding Photocell DoorAutomatic Sliding Photocell Door

Automatic Sliding Photocell Door

You can rest assured to buy customized Automatic Sliding Photocell Door from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

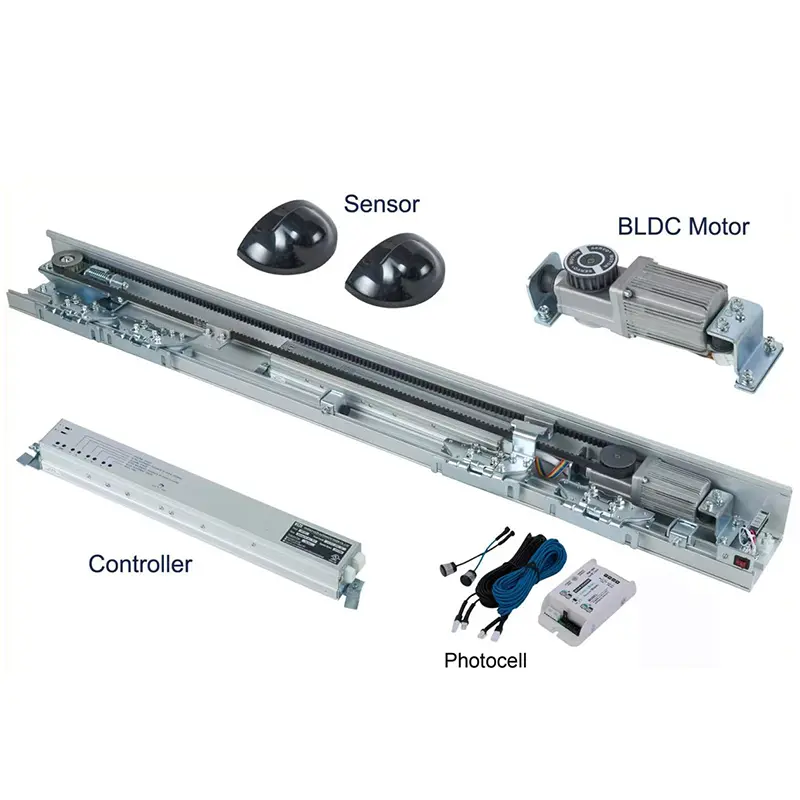

Automatic Sliding Photocell Door VZ-125A , with special Japanese design,whose hangers can pass the motor, is the better choice for narrow door. It is used with photocell to keep safety for the people who pass the door.

Technical specifications of Automatic Sliding Photocell Door VZ-125A

Door style

Single-leaf

Double-leaf

Door leaf weight

≤1*120 kg

≤2*120kg

Door leaf width

600-1200mm

500-1100mm

Opening speed

100-500 mm/s(Adjustable)

100-500 mm/s(Adjustable)

Closing speed

100-500 mm/s(Adjustable)

100-500 mm/s(Adjustable)

Motor

24V 55W brushless DC motor

Hold open time

0-9second(Adjustable)

Safety feature

reverse upon an obstruction

Power supply

AC220V, 50Hz-60Hz

Operating Temperature

-20°C~50°C


Features and functions of Automatic Sliding Photocell Door VZ-125A:

1.Motor power control system with automatic reversal for user safety

2.Advanced brushless motor and worm gear reducer integration, high efficiency, great torque, no powder pollution, quick in speed up and down, long service life.

3.Automatically reverse back upon an obstruction.

4.Intelligent microprocessor control system with self-learning function

5.Low noise design (<45db)

Packing list of Automatic Sliding Photocell Door VZ-125A:


Cross section details of Automatic Sliding Photocell Door VZ-125A:

Certificate of CE:
